LC LED-SLT-775BR: Top View Bicolor Blue & Red SMD LED
LC LED Power Top SMD LED Blue and Red (120 Degree)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Suitable for
SMT Assembly |
|
(2) Super Bright
Bi-Color SMD LED Blue & Red |
(5) Sun Light
Viewable SMD LED |
|
(3) Excellent color
mixing characteristics |
(6) Rugged design
suitable for both indoor & outdoor use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
125 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +80 |
0C |
|
Storage Temperature |
-40
to +85 |
0C |
(1) Pulse width of 1/10 duty and 0.10msec width,
for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Blue) |
VF |
IF
= 20mA |
2.8 |
3.3 |
V |
|
|
Forward Voltage
(Red) |
VF |
IF
= 20mA |
1.8 |
|
2.2 |
V |
|
Dominant
Wavelength (Blue) |
lD |
IF
= 20mA |
460 |
|
475 |
nm |
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
625 |
|
635 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
120 |
|
Deg. |
|
Luminous
Intensity (Blue) |
IV |
IF
= 20mA |
500 |
|
900 |
mcd |
|
Luminous Intensity
(Red) |
IV |
IF
= 20mA |
500 |
|
800 |
mcd |

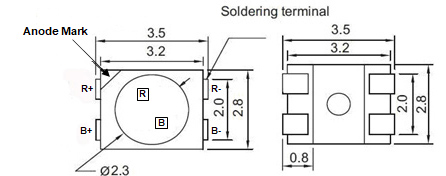

DEVICE DIAGRAM
|
LC LED Corporation |
